Main features:

• 9 kHz~40 GHz real-time spectrum analyzer/receiver
• Superheterodyne digital receiver architecture, 14 segments pre-selected filter
• Typical image suppression and IF rejection>75 dBc
• 100 MHz analysis bandwidth with adjustable sampling rate, 400 GHz/sec spectrum sweep speed
• FPGA based digital signal processing
• 40 GHz DANL=-141 dBm/Hz, Phase Noise=-86 dBc/Hz@10 kHz
• Weight 185 grams (core module), size 125 × 60 × 17 mm, power consumption 10-14 W
• Highly compatible API interfaces and SAStudio4 GUI
• Compatible with ARM and x86 processors, Linux and Windows operating systems
• Built-in OCXO (option), temperature drift≤0.15 ppm

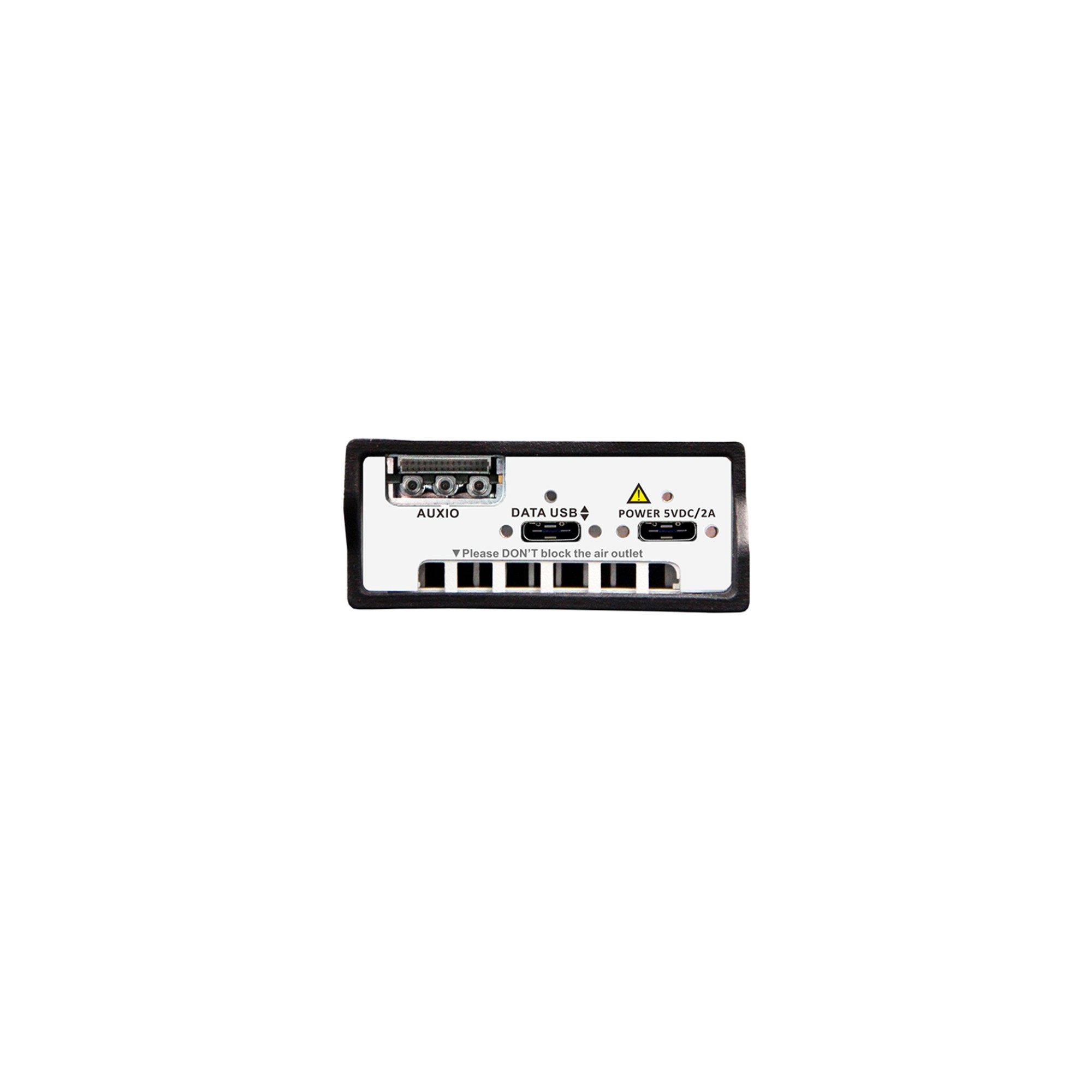

• USB3.0/2.0 Type C supported
