Spectrum Analyzer HAROGIC PXE-200
Main features: Frequency range: 9kHz to 20GHz Superheterodyne receiver structure, 19-segment preselected filtering Display average noise level as low as -168dBm/Hz, standard preamplifier Spectrum scanning rate up to 900GHz/s (RBW≥300kHz) Single sideband phase noise: -100 dBc/Hz @1GHz, 10kHz offset Standard analysis bandwidth 100MHz 10.1-inch touch screen, large field of view, efficient interaction Weighing only 1.5kg, it is extremely portable Standard channel power, side channel rejection ratio, third-order intermodulation, occupied bandwidth, phase noise and other measurement functions Standard basic analog modulated signal analysis, including AM/FM, supports continuous audio demodulation output Standard time domain IQ waveform, PvT waveform, real-time spectrum acquisition and playback..
Network Node Spectrum Analyzer HAROGIC NXN-400
Main features: 9 kHz-40 GHz real-time spectrum analyzer Superheterodyne digital receiver architecture, 14 segments pre-selected filter 9 kHz~40 GHz typical image suppression >75 dBc, typical IF rejection>75 dBc 100 MHz analysis bandwidth with adjustable sampling rate, 291.6 GHz/sec sweep speed FPGA based digital signal processing Weight 660 grams, size 167×117×28 mm, power consumption: 18 W 1000M/100M Ethernet interface Build-in multimode GNSS Provides 1PPS, latitude and longitude information and timestamp Highly compatible API interfaces and SAStudio4 GUI Remote master of ARM and x86 processor are supported Linux and Windows are supported Operating temperatures range from -20 ℃/-40 ℃ to 65 ℃ (option) Built-in OCXO (option) or GNSS disciplined OCXO (option) Built-in 4G data module (option)..
Network Node Real-Time Spectrum Analyzer/Receiver HAROGIC NXE-200
Main features: 9 kHz-20 GHz real-time spectrum analyzer/receiver Superheterodyne digital receiver architecture, 19segments pre-selected filter 9 kHz-9 GHz typical image suppression>90 dB, typical IF rejection>90 dB 9 GHz~20 GHz typical image suppression>60 dB, typical IF rejection>90 dB 100 MHz analysis bandwidth with adjustable sampling rate, 320.2 GHz/sec sweep speed FPGA based digital signal processing Weight 595 grams, size 167 × 117 × 28 mm, power consumption: 13-16 W 1000M/100M Ethernet interface Build-in multimode GNSS Provides 1PPS, latitude and longitude information and timestamp Highly compatible API interfaces and SAStudio4 GUI Remote master of ARM and x86 processor are supported Linux and Windows are supported Operating temperatures range from -20 ℃/-40 ℃ to 70 ℃ (option) Built-in OCXO (option) or GNSS disciplined OCXO (option) Built-in 4G data module (option)..
Network Node Spectrum Analyzer/Receiver HAROGIC NXE-90
Main features: 9 kHz-9.5 GHz real-time spectrum analyzer/receiver Superheterodyne digital receiver architecture, 14segments pre-selected filter 9 kHz-9.5 GHz typical image suppression>90 dB, typical IF rejection>90 dB 100 MHz analysis bandwidth with adjustable sampling rate, 330.9 GHz/sec sweep speed FPGA based digital signal processing Weight 645 grams, 167 × 117 × 28 mm, power consumption: 13-16 W 1000M/100M Ethernet interface Build-in multimode GNSS Providing 1PPS, latitude and longitude information and timestamp Highly compatible API interfaces and SAStudio4 GUI Remote master of ARM and x86 processor are supported Linux and Windows are supported Operating temperatures range from -20 ℃/-40 ℃ to 70 ℃ (option) Built-in OCXO (option) or GNSS disciplined OCXO (option) Built-in 4G data module (option)..
Network Node Spectrum Analyzer HAROGIC NXN-60
Main features: 9 kHz-6.3 GHz real-time spectrum analyzer Integrated 100 kHz-6.3 GHz analog signal generator (option) DANL: -160 dBm/Hz, residual response: -110 dBm, equipped with preamplifier 1GHz phase noise: -110 dBc/Hz@10 kHz offset 6.25 MHz analysis bandwidth, 69 GHz/s spectrum sweep speed Weight 650 grams, size 167 ×117 ×28 mm, power consumption: 14 W 1000M/100M Ethernet interface Build-in multimode GNSS Provides 1PPS, latitude and longitude information and timestamp Highly compatible API interfaces and SAStudio4 GUI Remote master of ARM and x86 processor are supported Linux and Windows are supported Operating temperatures range from -20 oC/-40 ℃ to 65 ℃ (option) Built-in OCXO (option) or GNSS disciplined OCXO (option)..
Network Node Spectrum Analyzer/Receiver HAROGIC NXM-60
Main features: 9 kHz-6.3 GHz real-time spectrum analyzer/receiver Integrated 100 kHz-6.3 GHz analog signal generator (option) 100MHz analysis bandwidth, 78 GHz/sec spectrum sweep speed FPGA based digital signal processing Weight 635 grams, size 167 × 117 × 28 mm, power consumption: 13-16 W 1000M/100M Ethernet interface Build-in multimode GNSS Provides 1PPS, latitude and longitude information and timestamp Highly compatible API interfaces and SAStudio4 GUI Remote master of ARM and x86 processor are supported Linux and Windows are supported Operating temperatures range from -20 ℃/-40 ℃ to 70 ℃ (option) Built-in OCXO (option) or GNSS disciplined OCXO (option) Built-in 4G data module (option)..
Spectrum Analyzer/Receiver HAROGIC SAN-400
Main features: 9 kHz~40 GHz real-time spectrum analyzer/receiver Superheterodyne digital receiver architecture, 14 segments pre-selected filter Typical image suppression and IF rejection>75 dBc 100 MHz analysis bandwidth with adjustable sampling rate, 400 GHz/sec spectrum sweep speed FPGA based digital signal processing 40 GHz DANL=-141 dBm/Hz, Phase Noise=-86 dBc/Hz@10 kHz Weight 185 grams (core module), size 125 × 60 × 17 mm, power consumption 10-14 W Highly compatible API interfaces and SAStudio4 GUI Compatible with ARM and x86 processors, Linux and Windows operating systems Built-in OCXO (option), temperature drift≤0.15 ppm USB3.0/2.0 Type C supported..
Compact Real-Time Spectrum Analyzer/Receiver HAROGIC SAE-200
Main features: 9 kHz~20 GHz real-time spectrum analyzer/receiver Superheterodyne digital receiver architecture, 19segments pre-selected filter 9 kHz~9 GHz typical image suppression>90 dB, typical IF rejection>90 dB 9 GHz~20 GHz typical image suppression>60 dB, typical IF rejection>90 dB 100 MHz analysis bandwidth with adjustable sampling rate, 1.2 THz/sec spectrum sweep speed FPGA based digital signal processing Weight 195 grams (core module), size 125 × 60 × 15 mm, power consumption 10-14 W Highly compatible API interfaces and SAStudio4 GUI Compatible with ARM and x86 processors, Linux and Windows operating systems Operating temperatures range from – 20 ℃/- 40 ℃ to 70 ℃ (option) Built-in OCXO (option)..
Compact Real-Time Spectrum Analyzer/Receiver HAROGIC SAE-90
Main features: 9 kHz~9.5 GHz real-time spectrum analyzer/receiver Superheterodyne digital receiver architecture, 14segments pre-selected filter 9 kHz~9.5 GHz typical image suppression>90 dB, typical IF rejection>90 dB 100 MHz analysis bandwidth with adjustable sampling rate, 1.2 THz/sec spectrum sweep speed FPGA based digital signal processing Weight 188 grams (core module), size 118 × 60 × 15 mm, power consumption 10-14 W Highly compatible API interfaces and SAStudio4 GUI Compatible with ARM and x86 processors, Linux and Windows operating systems Operating temperatures range from – 20 ℃/- 40 ℃ to 70 ℃ (option) USB 3.0/2.0 Type-C interface..
Compact Real-Time Spectrum Analyzer/Receiver HAROGIC SAM-80
Main features: 9 kHz~8.5 GHz real-time spectrum analyzer/receiver Integrated 100 kHz-6.3 GHz analog signal generator (option) 100MHz analysis bandwidth, 300 GHz/sec spectrum sweep speed FPGA based digital signal processing Weight 159 grams (core module), size 142 × 54 × 16 mm, power consumption 7-10 W Highly compatible API interfaces and SAStudio4 GUI Compatible with ARM and x86 processors, Linux and Windows operating systems Operating temperatures range from -20 ℃/-40 ℃ to 70 ℃ (option) USB 3.0/2.0 Type-C interface..
Compact Real-Time Spectrum Analyzer/Receiver HAROGIC SAM-60
Main features: 9 kHz~6.3 GHz real-time spectrum analyzer/receiver Integrated 100 kHz-6.3 GHz analog signal generator (option) 100 MHz analysis bandwidth, 300 GHz/sec spectrum sweep speed FPGA based digital signal processing 1GHz phase noise: -114 dBc/Hz@10kHz 1GHz DANL: -167 dBm/Hz Weight 168 grams (core module), size 142mm×54mm×16mm, power consumption 7-10 W Highly compatible API interfaces and SAStudio4 GUI Compatible with ARM and x86 processors, Linux and Windows operating systems Operating temperatures range from -20 oC/-40 oC to 70 oC (option) Built-in OCXO (option), temperature drift≤0.15 ppm USB3.0/2.0 Type-C interface..

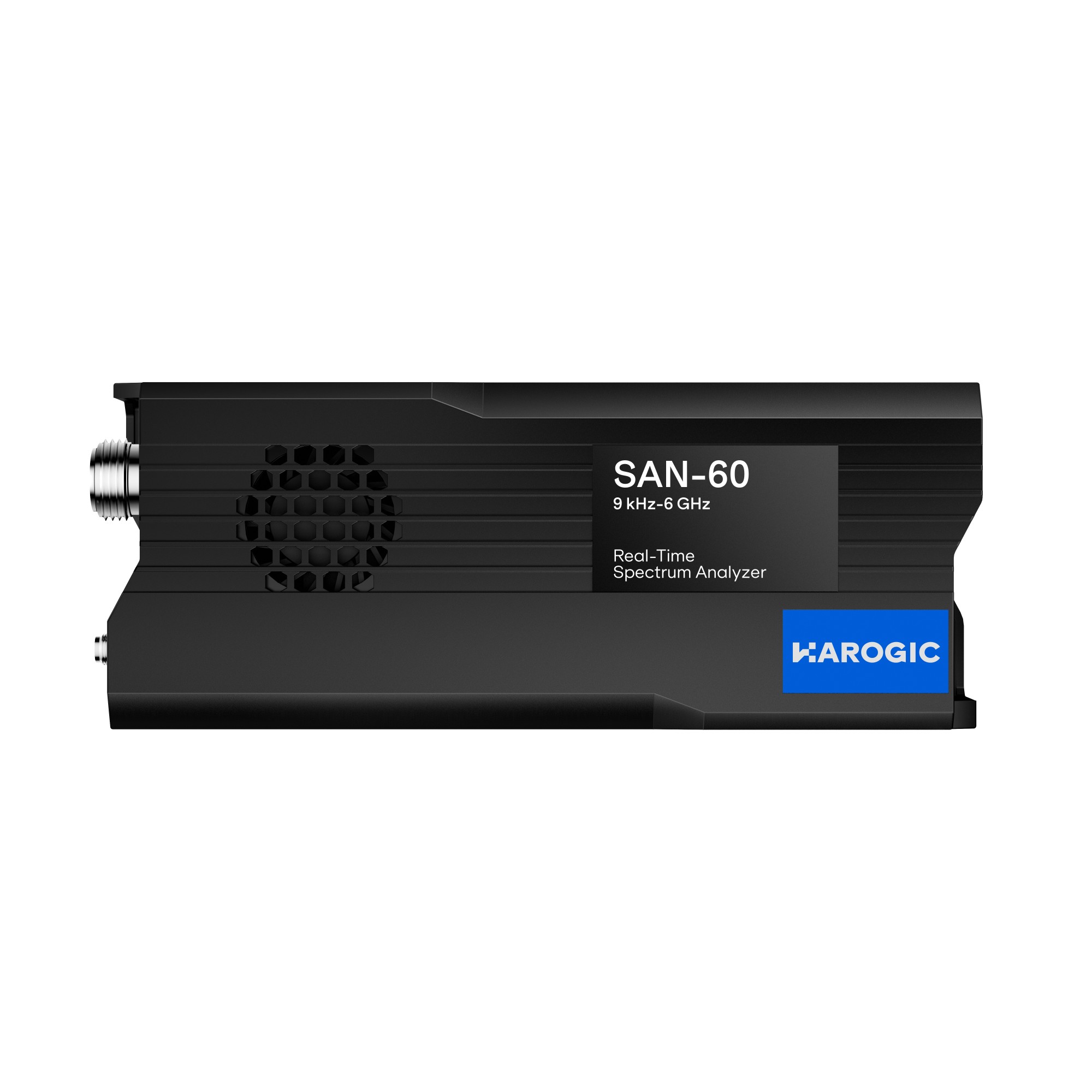

Compact Real-Time Spectrum Analyzer HAROGIC SAN-60
Main features: Outstanding device performance and price advantage 9 kHz~6.3 GHz real-time spectrum analyzer Integrated 100 kHz-6.3 GHz analog signal generator (option) 25 MHz analysis bandwidth, 100 GHz/s sweep speed, FPGA signal processing Typical phase noise: 1GHz carrier -110 dBc/Hz@10 kHz Standard preamplifier, DANL: -162 dBm/Hz Core module supported, light as 168 g, 142x54x16 mm, power consumption 7~10 W Highly compatible API interfaces (HTRA API)and SAStudio4 GUI Compatible with ARM and x86 processors, Linux and Windows operating systems Operating temperatures range from – 20 ℃/- 40 ℃ to 65 ℃ (opt.) Built-in OCXO (option), temperature drift≤0.15 ppm USB3.0/2.0 Type-C interface..
Compact Real-Time Spectrum Analyzer/Receiver HAROGIC SAN-45
Main features: Outstanding device performance and price advantage 9 kHz~4.5/6.3 GHz real-time spectrum analyzer/receiver Integrated 100 kHz-6.3 GHz analog signal generator (option) Equipped with preamplifier, DANL: -160 dBm/Hz, residual response: -110dBm Typical phase noise: -110 dBc/Hz@1 GHz 10 kHz offset Bandwidth: 6.25 MHz, spectrum sweep speed> 20 GHz/s Weight: 159 grams (core modular), size: 142 x 54 x 16 mm Highly compatible API interfaces and SAStudio4 GUI Compatible with ARM and x86 processors, Linux and Windows operating systems Operating temperatures range from – 20 ℃/- 40 ℃ to 70 ℃ (option) USB3.0/2.0 Type-C interface..
