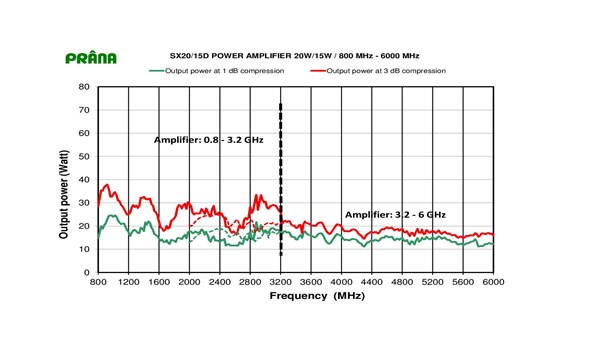

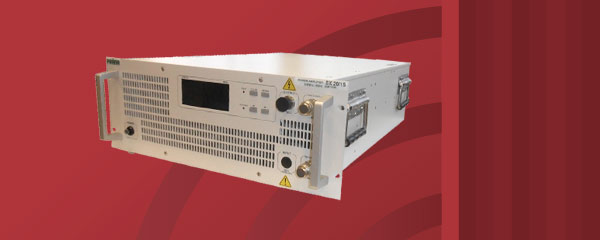

SX 20/15 :

0.8 GHz - 6 GHz / 20 W CW - 15 W CW

• Class A solid state
• Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
• Typical output power :
• 20 W CW (0.8 – 3.2 GHz) and
• 15 W CW (3.2 – 6 GHz)
• Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
• P1dB > 16 W and H < -20 dBc up to 3.2 GHz and
• P1dB > 10 W and H < -20 dBc from 3.2 GHz to 6 GHz
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Upgradable to SX 40/30 or SX 70/15 or SX 70/30 possible (7U)
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty

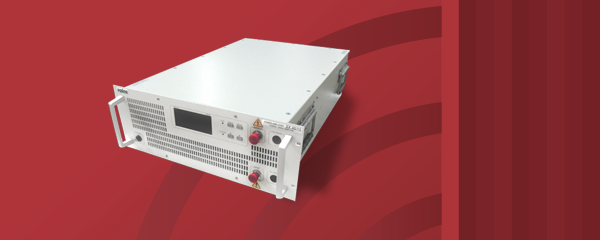

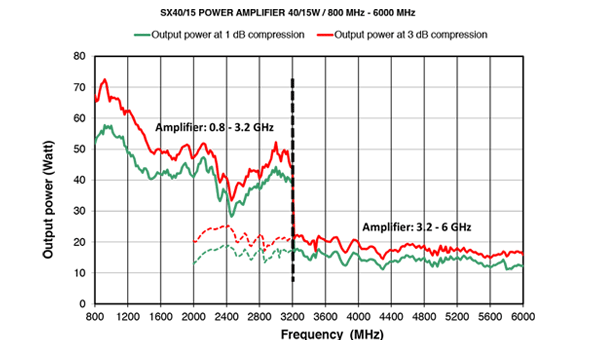

SX 40/15 :

0.8 GHz - 6 GHz / 40 W CW - 15 W CW

• Class A solid state
• Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
• Typical output power :
• 40 W CW (0.8 – 3.2 GHz) and
• 15 W CW (3.2 – 6 GHz)
• Linear output power guaranteed with harmonics < -20 dBc
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Upgradable to  SX 40/30 or SX 70/15 or SX 70/30 possible (7U)
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty

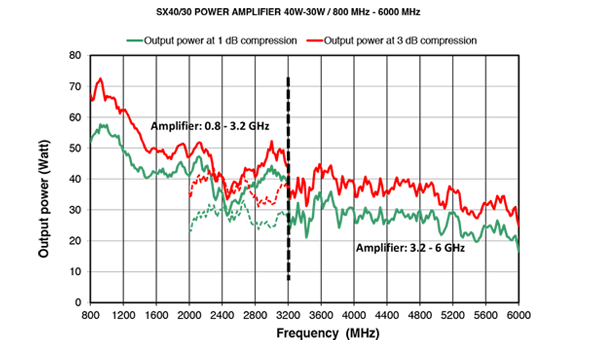

SX 40/30 :

0.8 GHz - 6 GHz / 40 W CW - 30 W CW

• Class A solid state
• Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
• Typical output power :
• 40 W CW (0.8 – 3.2 GHz) and
• 30 W CW (3.2 – 6 GHz)
• Linear output power guaranteed with harmonics < -20 dBc
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Upgradable to SX 70/30 possible
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty

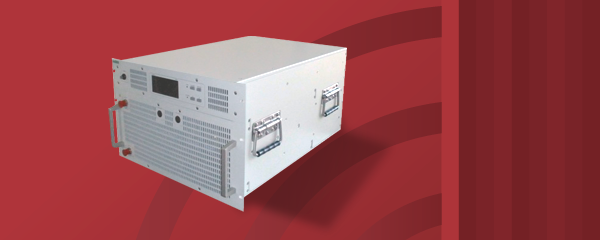

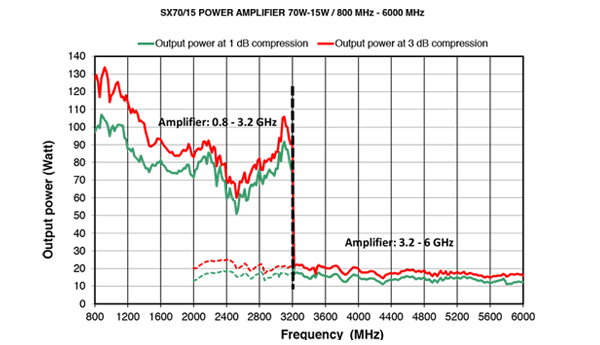

SX 70/15 :

0.8 GHz - 6 GHz / 70 W CW - 15 W CW

• Class A solid state
• Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
• Typical output power :
• 70 W CW (0.8 – 3.2 GHz) and
• 15 W CW (3.2 – 6 GHz)
• Linear output power guaranteed with harmonics < -20 dBc
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Upgradable to SX 70/30 possible
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty

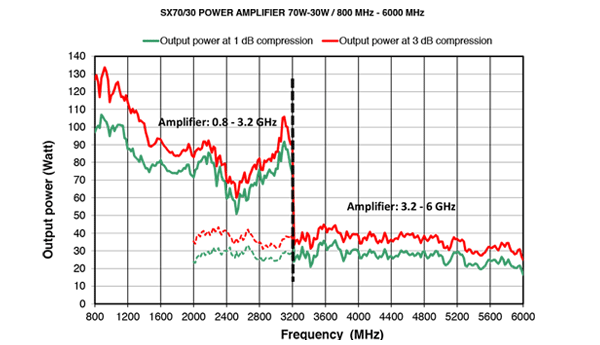

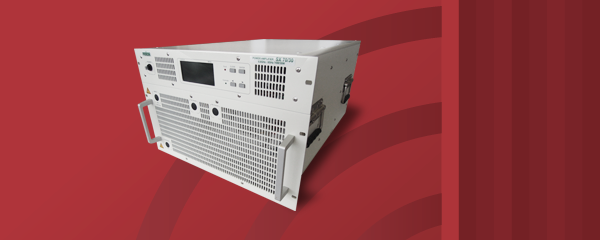

SX 70/30 :

0.8 GHz - 6 GHz / 70 W CW - 30 W CW

• Class A solid state
• Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
• Typical output power :
• 70 W CW (0.8 – 3.2 GHz) and
• 30 W CW (3.2 – 6 GHz)
• Linear output power guaranteed with harmonics < -20 dBc
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty

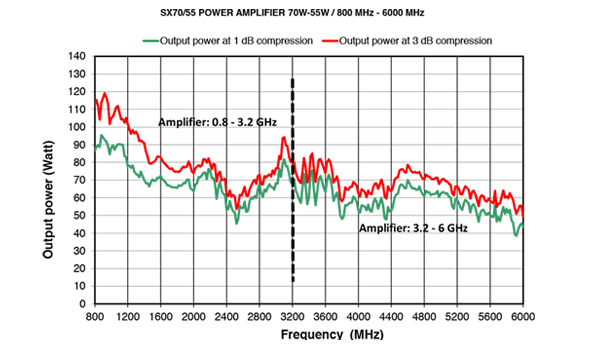

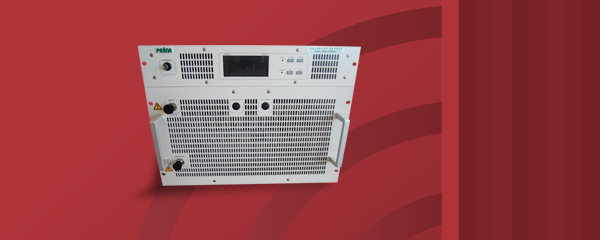

SX 70/55 :

0.8 GHz - 6 GHz / 70 W CW - 55 W CW

• Class A solid state
• Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
• Typical output power :
• 70 W CW (0.8 – 3.2 GHz) and
• 55 W CW (3.2 – 6 GHz)
• Linear output power guaranteed with harmonics < -20 dBc
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty

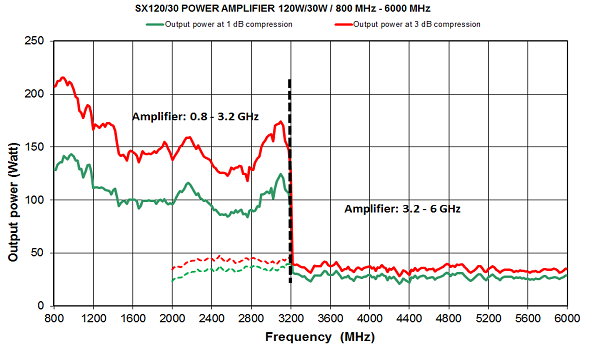

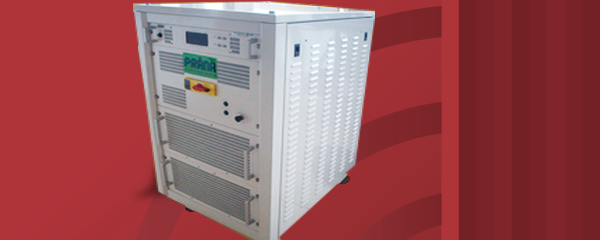

SX 120/30 :

0.8 GHz - 6 GHz / 120 W CW - 30 W CW

• Class A solid state
• Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
• Typical output power :
• 120 W CW (0.8 – 3.2 GHz) and
• 30 W CW (3.2 – 6 GHz)
• Linear output power guaranteed with harmonics < -20 dBc
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Upgradable to SX120/55 or SX220/30 or SX220/55
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty

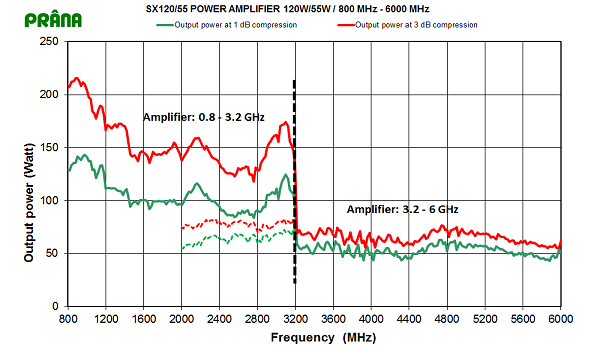

SX 120/55 :

0.8 GHz - 6 GHz / 120 W CW - 55 W CW

• Class A solid state
• Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
• Typical output power :
• 120 W CW (0.8 – 3.2 GHz) and
• 55 W CW (3.2 – 6 GHz)
• Linear output power guaranteed with harmonics < -20 dBc
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Upgradable to SX220/55
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty

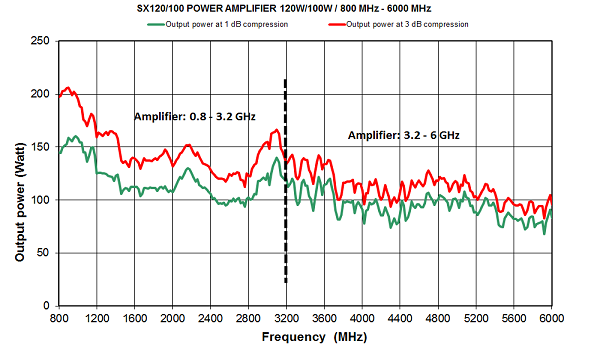

SX 120/100 :

0.8 GHz - 6 GHz / 120 W CW - 100 W CW

• Class A solid state
• Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
• Typical output power :
• 120 W CW (0.8 – 3.2 GHz) and
• 100 W CW (3.2 – 6 GHz)
• Linear output power guaranteed with harmonics < -20 dBc
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Upgradable to SX220/100
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty
• Export license can be requested

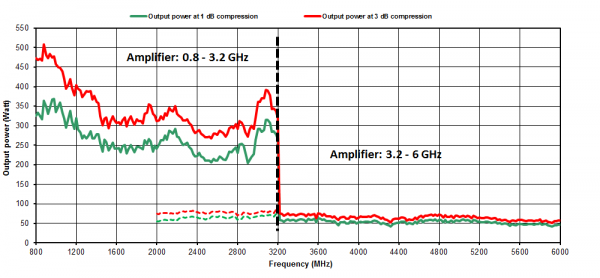

SX 220/55 :

0.8 GHz - 6 GHz / 220 W CW - 55 W CW

• Class A solid state
• Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
• Typical output power :
• 220 W CW (0.8 – 3.2 GHz) and
• 55 W CW (3.2 – 6 GHz)
• Linear output power guaranteed with harmonics < -20 dBc
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Upgradable to SX220/100
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty
• Export license can be requested

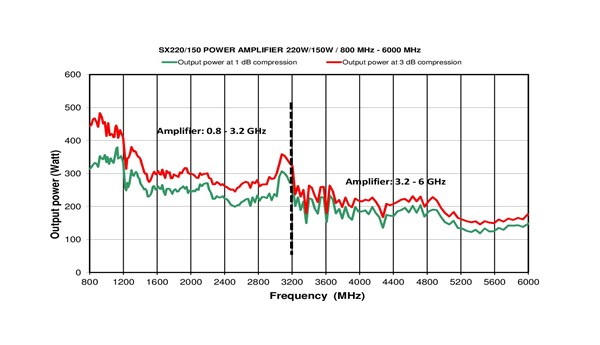

SX 220/150 :

0.8 GHz - 6 GHz / 220 W CW - 150 W CW

• Class A solid state
• Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
• Typical output power :
• 220 W CW (0.8 – 3.2 GHz) and
• 150 W CW (3.2 – 6 GHz)
• Linear output power guaranteed with harmonics < -20 dBc
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty
• Export license can be requested

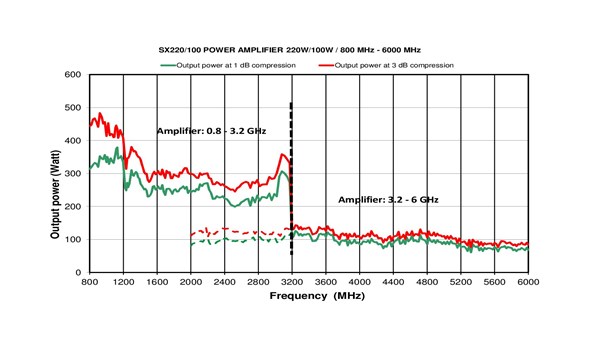

SX 220/100 :

0.8 GHz - 6 GHz / 220 W CW - 100 W CW

• Class A solid state
• Broadband (instantaneous dual band): 0.8 GHz – 6 GHz
• Typical output power :
• 220 W CW (0.8 – 3.2 GHz) and
• 100 W CW (3.2 – 6 GHz)
• Linear output power guaranteed with harmonics < -20 dBc
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty
• Export license can be requested
