  • Brand: Prana
  • Product Code: Amplifiers DT Range

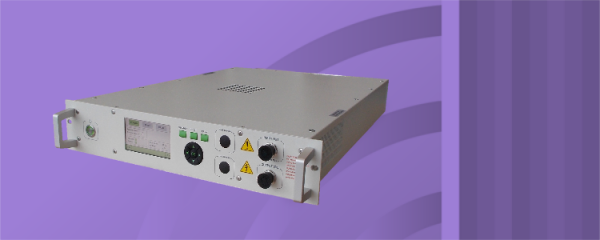

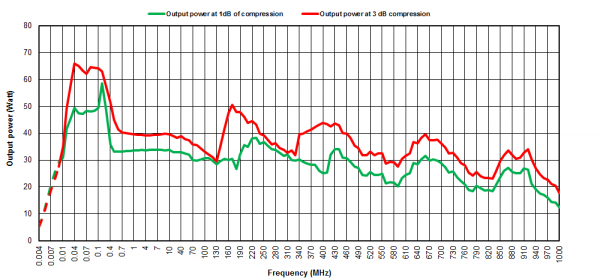

DT 30 :

9 kHz - 1000 MHz / 30 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz – 1000 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 30 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
  • P1dB > 20 W and H<-20 dBc up to 450 MHz and
  • P1dB > 10 W and H<-20 dBc from 450 MHz to 1000 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty

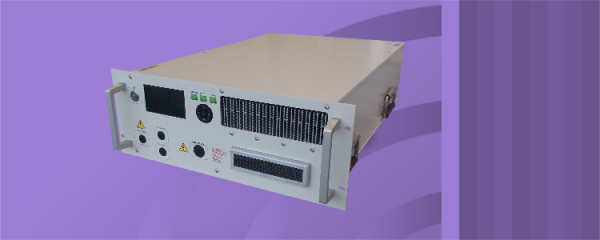

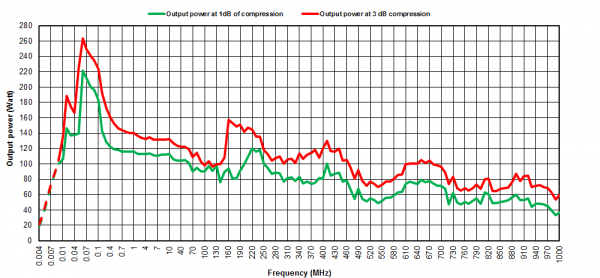

DT 90 :

9 kHz - 1000 MHz / 90 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz – 1000 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 90 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
  • P1dB > 50 W and H<-20 dBc up to 500 MHz and
  • P1dB > 30 W and H<-20 dBc from 500 MHz to 1000 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty

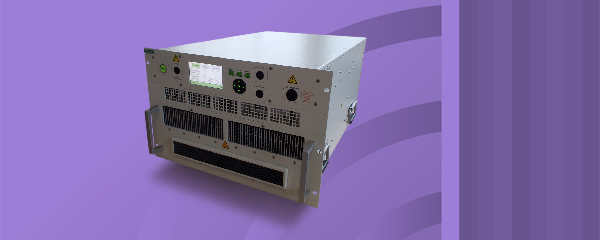

DT 180 :

9 kHz - 1000 MHz / 180 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz – 1000 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 180 W CW

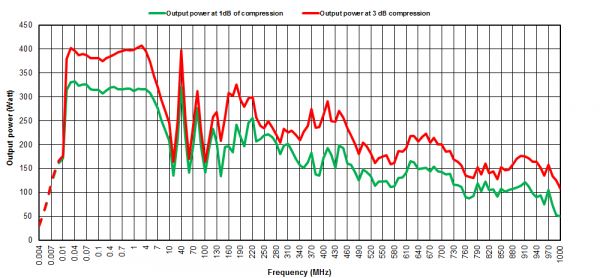

  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
  • P1dB > 120 W and H < -20 dBc up to 400 MHz and
  • P1dB > 50 W and H < -20 dBc from 400 MHz to 1000 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty

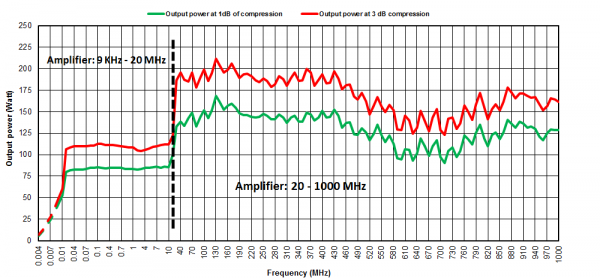

DT 90/130 :

9 kHz - 1000 MHz / 90 W CW - 130 W CW

  • Class A solid state
  • Broadband (instantaneous dual band): 9 kHz – 1000 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power :
  • 90 W CW (9 kHz – 20 MHz) and
  • 130 W CW (20 MHz – 1 GHz)
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
  • P1dB >35 W and H<-20dBc at 9 kHz
  • P1dB >45 W and H<-20dBc from 10 kHz to 20 MHz
  • P1dB and H < -20 dBc from 20MHz to 1000MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty

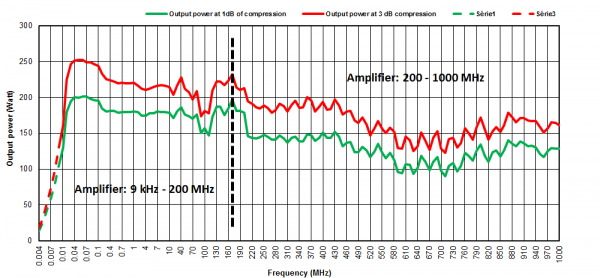

DT 170/130 :

9 kHz - 1000 MHz / 170 W CW - 130 W CW

  • Class A solid state
  • Broadband (instantaneous dual band): 9 kHz – 1000 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power :
  • 170 W CW (9 kHz – 200 MHz) and
  • 130 W CW (200 MHz – 1 GHz)
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
  • P1dB > 100 W and H<-20dBc at 9 kHz
  • P1dB > 110 W and H<-20dBc from 10 kHz to 200 MHz
  • P1dB and H < -20 dBc from 200MHz to 1000MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty

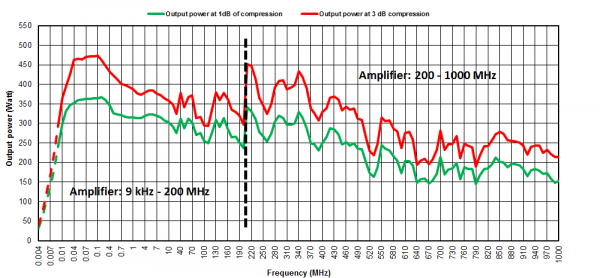

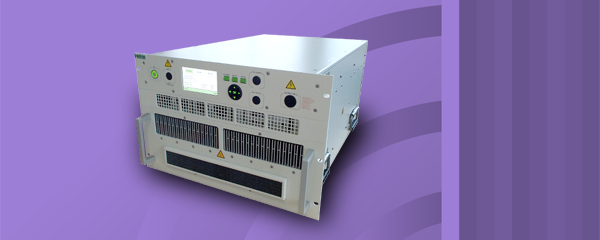

DT 310/220 :

9 kHz - 1000 MHz / 310 W CW - 220 W CW

  • Class A solid state
  • Broadband (instantaneous dual band): 9 kHz – 1000 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power :
  • 310 W CW (9 kHz – 200 MHz) and
  • 220 W CW (200 MHz – 1 GHz)
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
  • P1dB > 180 W and H < -20 dBc up to 200 MHz
  • P1dB and H < -20 dBc from 200MHz to 1000MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty

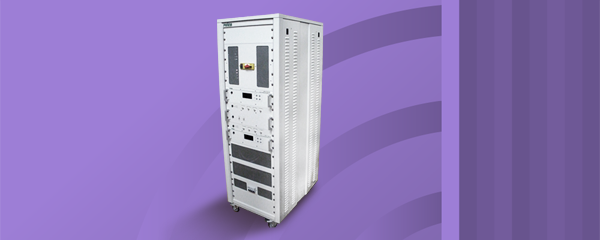

DT 1250-800 :

9 kHz - 1000 MHz / 1250 W CW - 800 W CW

  • Class A solid state
  • Broadband (instantaneous dual band): 9 kHz – 1000 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power :
  • 1250 W CW (9 kHz – 150 MHz) and
  • 800 W CW (150 MHz – 1 GHz)

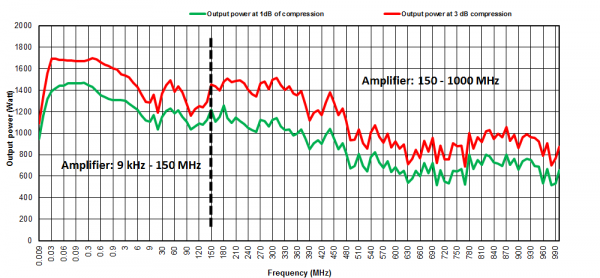

  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
  • P1dB > 900 W and H<-20 dBc at 9 kHz
  • P1dB > 1000 W and H<-20 dBc from 10 kHz to 20 kHz
  • P1dB > 950 W and H < -20 dBc from 20 kHz to 150MHz
  • P1dB and H < -20 dBc from 150MHz to 1000MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Cabinet on wheels
  • 3 years standard warranty
