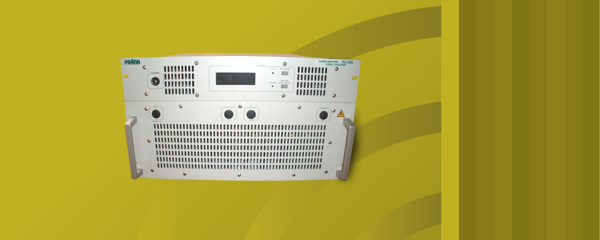

SU 175 :

1 GHz - 2.5 GHz / 175 W CW

• Class A solid state
• Broadband (instantaneous single band): 1 GHz – 2.5 GHz
• Typical output power : 175 W CW
• Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
• P1dB > 140 W and H < -20 dBc up to 1.6 GHz and
• P1dB > 120 W and H < -20 dBc from 1.6 GHz to 2.5 GHz
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Upgradable to SU 300 possible
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty

SU 300 :

1 GHz - 2.5 GHz / 300 W CW

• Class A solid state
• Broadband (instantaneous single band): 1 GHz – 2.5 GHz
• Typical output power : 300 W CW
• Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
• P1dB > 270 W and H < -20 dBc up to 1.6 GHz and
• P1dB > 240 W and H < -20 dBc from 1.6 GHz to 2.5 GHz
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Upgradable to SU 600 possible (18U)
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty

SU 600 :

1 GHz - 2.5 GHz / 600 W CW

• Class A solid state
• Broadband (instantaneous single band): 1 GHz – 2.5 GHz
• Typical output power : 600 W CW
• Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
• P1dB > 500 W and H < -20 dBc up to 1.6 GHz and
• P1dB > 450 W and H < -20 dBc from 1.6 GHz to 2.5 GHz
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Upgradable to SU 1200 possible (32U)
• Reliable, efficient and robust
• 19" cabinet on wheels
• 3 years standard warranty

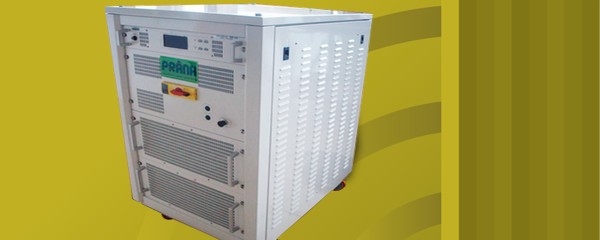

SU 1200 :

1 GHz - 2.5 GHz / 1200 W CW

• Class A solid state
• Broadband (instantaneous single band): 1 GHz – 2.5 GHz
• Typical output power : 1200 W CW
• Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
• P1dB > 900 W and H < -20 dBc up to 1.6 GHz and
• P1dB > 800 W and H < -20 dBc from 1.6 GHz to 2.5 GHz
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Reliable, efficient and robust
• 19" cabinet on wheels
• 3 years standard warranty
