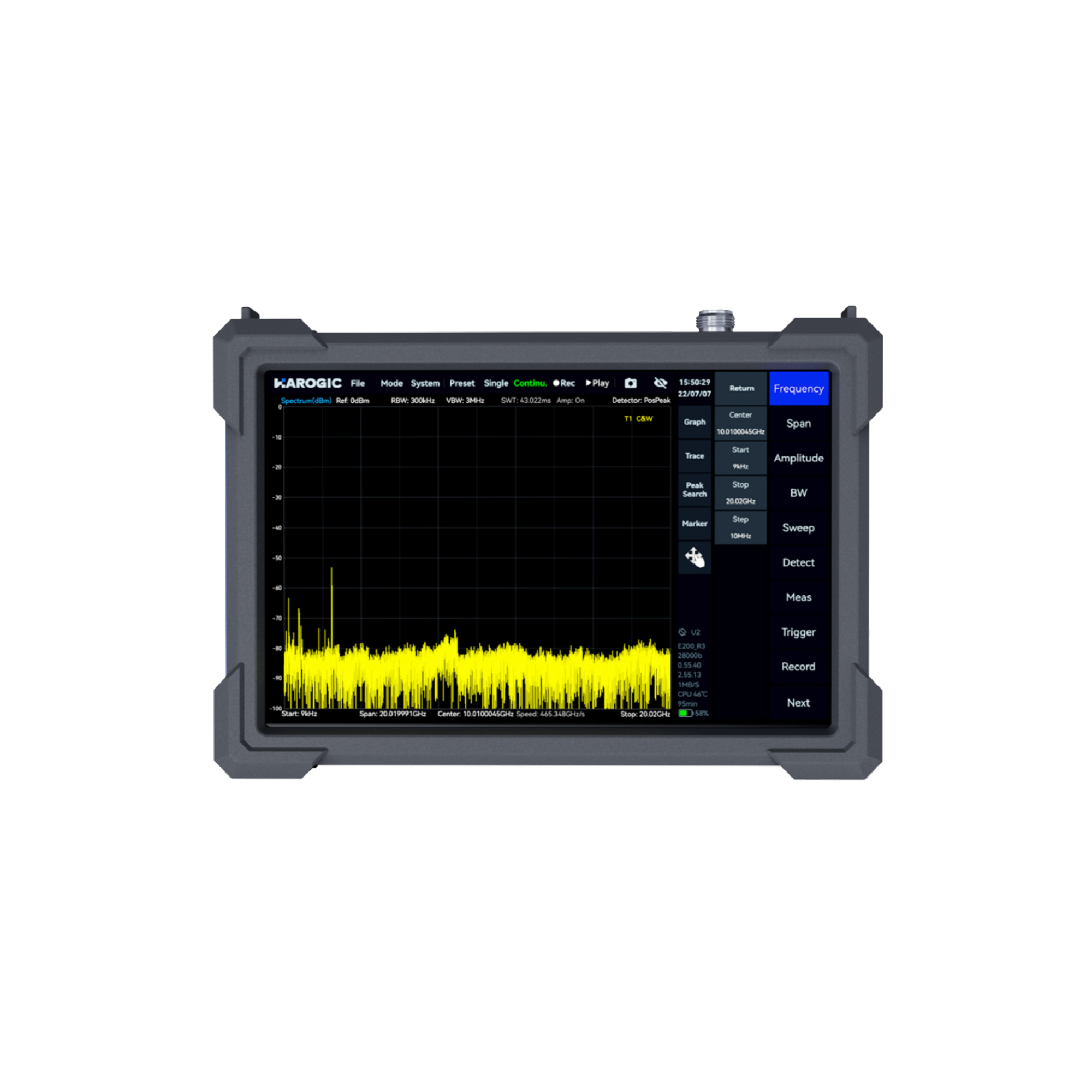

Real-Time Spectrum Analyzer HAROGIC PXE-90
Frequency range: 9 kHz to 9.5/20 GHz1 GHz DANL: -168 dBm/Hz1 GHz phase noise: -100 dBc/Hz@10 kHzAnalysis Bandwidth: up to 100 MHzChannel power, phase noise and more3 hours operation timePortable makes possible1.5 kg lightweight, 10.1-inch multi touchscreen..

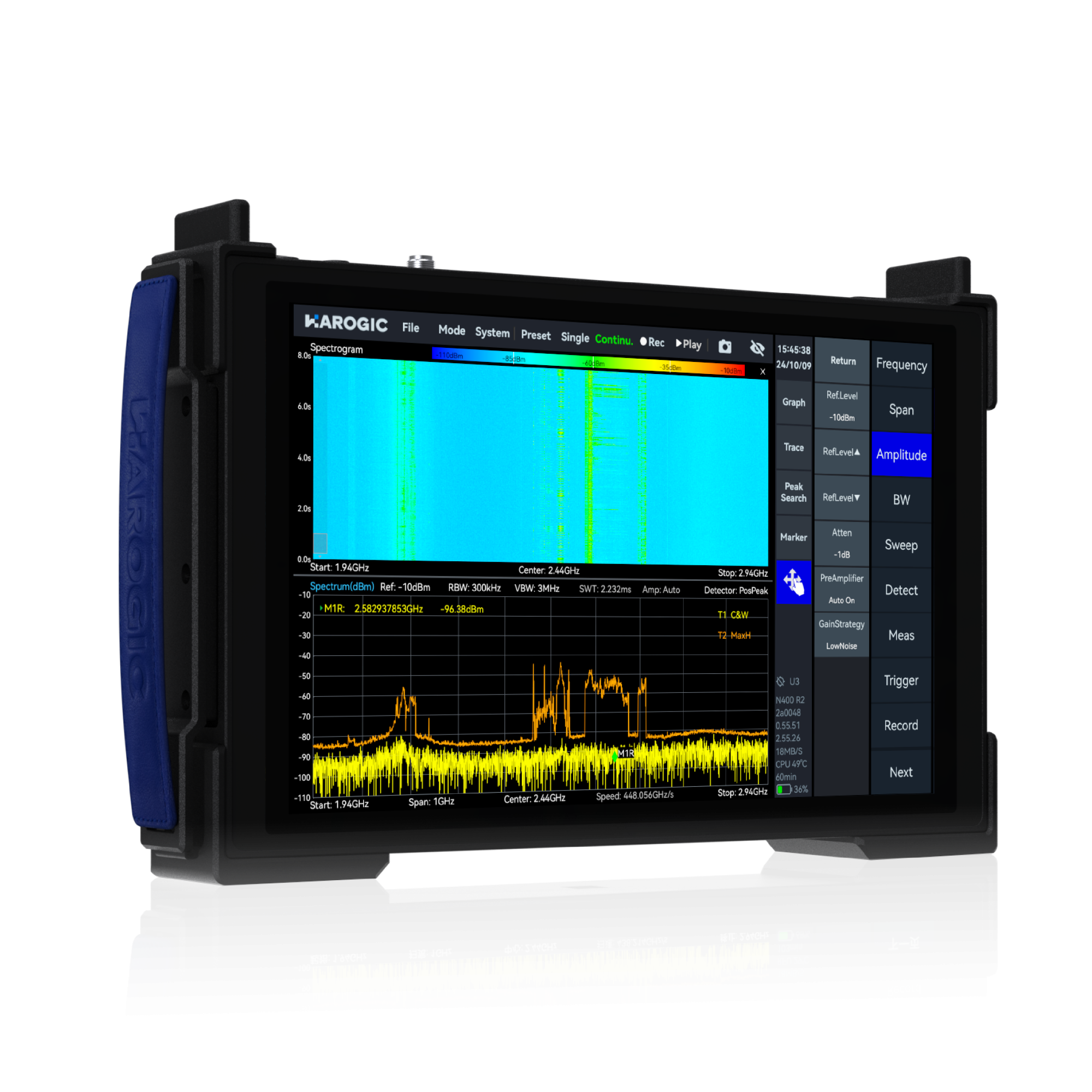

Real-Time Spectrum Analyzer HAROGIC PXE-90 Z
Windows 11 operating system1.2 kg lightweight, 8.8-inch multi touchscreenFrequency range: 9 kHz to 9.5 GHz1 GHz DANL: -168 dBm/Hz1 GHz phase noise: -100 dBc/Hz@10 kHzAnalysis bandwidth: up to 100 MHzCPU: high performance AMD Z1 Extreme16 GB RAM and 512 GB SSD..
Real-Time Spectrum Analyzer HAROGIC PXE-90R
IEC IP68 certifiedMIL-STD-810H method-512.6/514.8/516.8 certified2.5 kg lightweight, 10.1-inch multi touchscreenFrequency range: 9 kHz to 9.5 GHz1 GHz DANL: -161 dBm/Hz1 GHz phase noise: -100 dBc/Hz@10 kHzAnalysis bandwidth: up to 100 MHzOperation Time: 4 Hours (typ.)Built-in Nvidia Jetson Orin NX 8G (opt.)..
Real-Time Spectrum Analyzer HAROGIC PXN-400 Z
Windows 11 operating system1.2 kg lightweight, 8.8-inch multi touchscreenFrequency range: 9 kHz to 40 GHz1 GHz DANL: -168 dBm/Hz1 GHz phase noise: -100 dBc/Hz@10 kHzAnalysis bandwidth: up to 100 MHzCPU: high performance AMD Z1 Extreme16 GB RAM and 512 GB SSD..
Real-Time Spectrum Analyzer HAROGIC PXN-400R
IEC IP68 certifiedMIL-STD-810H method-512.6/514.8/516.8 certified2.5 kg lightweight, 10.1-inch multi touchscreenFrequency range: 9 kHz to 40 GHz1 GHz DANL: -161 dBm/Hz1 GHz phase noise: -100 dBc/Hz@10 kHzAnalysis bandwidth: up to 100 MHzOperation Time: 4 Hours (typ.)Built-in Nvidia Jetson Orin NX 8G (opt.)..
Spectrum Analyzer HAROGIC PXE-200
Main features: Frequency range: 9kHz to 20GHz Superheterodyne receiver structure, 19-segment preselected filtering Display average noise level as low as -168dBm/Hz, standard preamplifier Spectrum scanning rate up to 900GHz/s (RBW≥300kHz) Single sideband phase noise: -100 dBc/Hz @1GHz, 10kHz offset Standard analysis bandwidth 100MHz 10.1-inch touch screen, large field of view, efficient interaction Weighing only 1.5kg, it is extremely portable Standard channel power, side channel rejection ratio, third-order intermodulation, occupied bandwidth, phase noise and other measurement functions Standard basic analog modulated signal analysis, including AM/FM, supports continuous audio demodulation output Standard time domain IQ waveform, PvT waveform, real-time spectrum acquisition and playback..

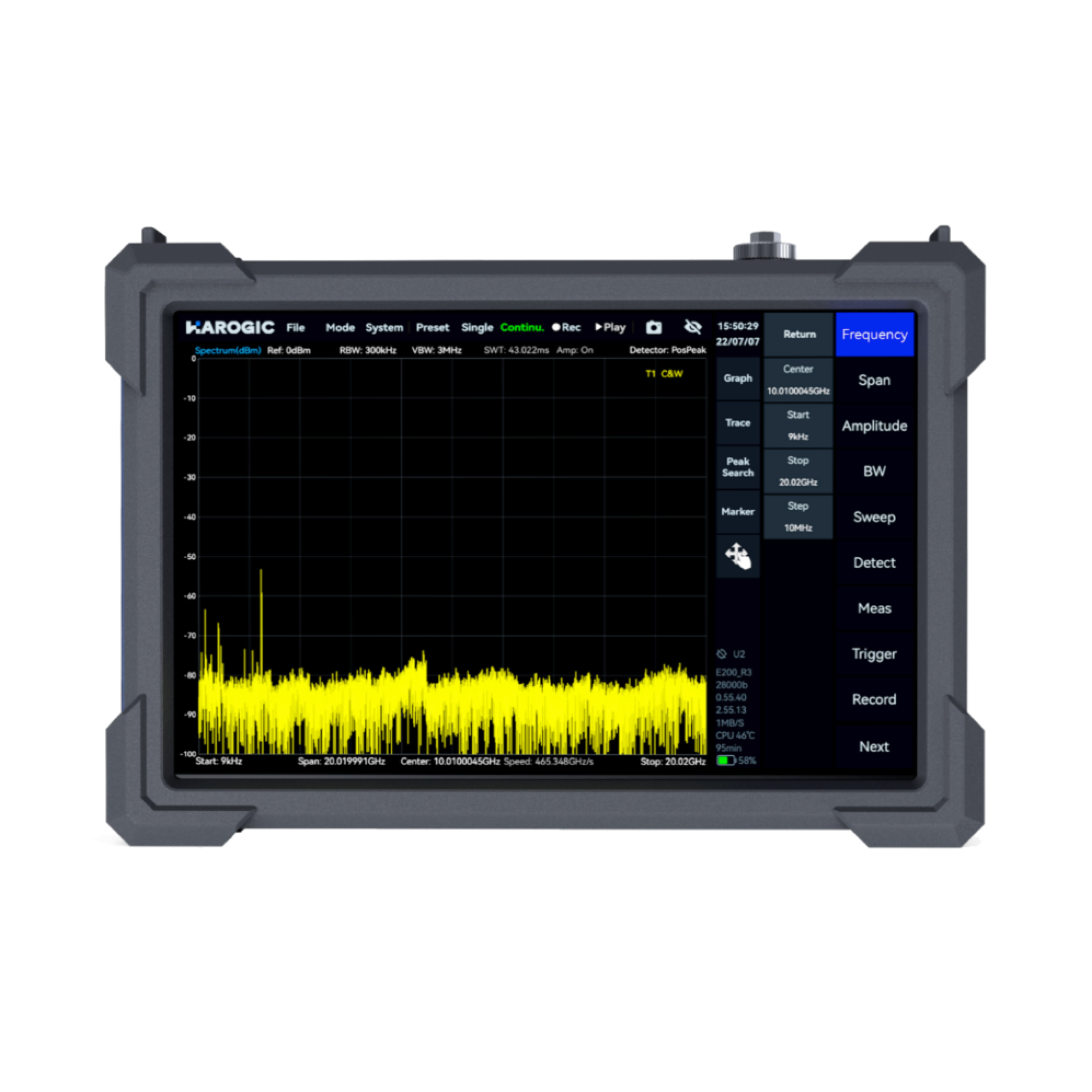

Spectrum Analyzer HAROGIC PXN-400
Frequency range: 9kHz to 40GHz1 GHz DANL: -161 dBm/Hz1 GHz phase noise: -107 dBc/Hz@10 kHzAnalysis Bandwidth: up to 100 MHzPortable makes possible1.5 kg lightweight, 10.1-inch multi touchscreenChannel power, phase noise and more3 hours operation time..
Network Node Spectrum Analyzer HAROGIC NXN-400
Main features: 9 kHz-40 GHz real-time spectrum analyzer Superheterodyne digital receiver architecture, 14 segments pre-selected filter 9 kHz~40 GHz typical image suppression >75 dBc, typical IF rejection>75 dBc 100 MHz analysis bandwidth with adjustable sampling rate, 291.6 GHz/sec sweep speed FPGA based digital signal processing Weight 660 grams, size 167×117×28 mm, power consumption: 18 W 1000M/100M Ethernet interface Build-in multimode GNSS Provides 1PPS, latitude and longitude information and timestamp Highly compatible API interfaces and SAStudio4 GUI Remote master of ARM and x86 processor are supported Linux and Windows are supported Operating temperatures range from -20 ℃/-40 ℃ to 65 ℃ (option) Built-in OCXO (option) or GNSS disciplined OCXO (option) Built-in 4G data module (option)..
Network Node Real-Time Spectrum Analyzer/Receiver HAROGIC NXE-200
Main features: 9 kHz-20 GHz real-time spectrum analyzer/receiver Superheterodyne digital receiver architecture, 19segments pre-selected filter 9 kHz-9 GHz typical image suppression>90 dB, typical IF rejection>90 dB 9 GHz~20 GHz typical image suppression>60 dB, typical IF rejection>90 dB 100 MHz analysis bandwidth with adjustable sampling rate, 320.2 GHz/sec sweep speed FPGA based digital signal processing Weight 595 grams, size 167 × 117 × 28 mm, power consumption: 13-16 W 1000M/100M Ethernet interface Build-in multimode GNSS Provides 1PPS, latitude and longitude information and timestamp Highly compatible API interfaces and SAStudio4 GUI Remote master of ARM and x86 processor are supported Linux and Windows are supported Operating temperatures range from -20 ℃/-40 ℃ to 70 ℃ (option) Built-in OCXO (option) or GNSS disciplined OCXO (option) Built-in 4G data module (option)..
Network Node Spectrum Analyzer/Receiver HAROGIC NXE-90
Main features: 9 kHz-9.5 GHz real-time spectrum analyzer/receiver Superheterodyne digital receiver architecture, 14segments pre-selected filter 9 kHz-9.5 GHz typical image suppression>90 dB, typical IF rejection>90 dB 100 MHz analysis bandwidth with adjustable sampling rate, 330.9 GHz/sec sweep speed FPGA based digital signal processing Weight 645 grams, 167 × 117 × 28 mm, power consumption: 13-16 W 1000M/100M Ethernet interface Build-in multimode GNSS Providing 1PPS, latitude and longitude information and timestamp Highly compatible API interfaces and SAStudio4 GUI Remote master of ARM and x86 processor are supported Linux and Windows are supported Operating temperatures range from -20 ℃/-40 ℃ to 70 ℃ (option) Built-in OCXO (option) or GNSS disciplined OCXO (option) Built-in 4G data module (option)..
Network Node Spectrum Analyzer HAROGIC NXN-60
Main features: 9 kHz-6.3 GHz real-time spectrum analyzer Integrated 100 kHz-6.3 GHz analog signal generator (option) DANL: -160 dBm/Hz, residual response: -110 dBm, equipped with preamplifier 1GHz phase noise: -110 dBc/Hz@10 kHz offset 6.25 MHz analysis bandwidth, 69 GHz/s spectrum sweep speed Weight 650 grams, size 167 ×117 ×28 mm, power consumption: 14 W 1000M/100M Ethernet interface Build-in multimode GNSS Provides 1PPS, latitude and longitude information and timestamp Highly compatible API interfaces and SAStudio4 GUI Remote master of ARM and x86 processor are supported Linux and Windows are supported Operating temperatures range from -20 oC/-40 ℃ to 65 ℃ (option) Built-in OCXO (option) or GNSS disciplined OCXO (option)..
Network Node Spectrum Analyzer/Receiver HAROGIC NXM-60
Main features: 9 kHz-6.3 GHz real-time spectrum analyzer/receiver Integrated 100 kHz-6.3 GHz analog signal generator (option) 100MHz analysis bandwidth, 78 GHz/sec spectrum sweep speed FPGA based digital signal processing Weight 635 grams, size 167 × 117 × 28 mm, power consumption: 13-16 W 1000M/100M Ethernet interface Build-in multimode GNSS Provides 1PPS, latitude and longitude information and timestamp Highly compatible API interfaces and SAStudio4 GUI Remote master of ARM and x86 processor are supported Linux and Windows are supported Operating temperatures range from -20 ℃/-40 ℃ to 70 ℃ (option) Built-in OCXO (option) or GNSS disciplined OCXO (option) Built-in 4G data module (option)..
Spectrum Analyzer/Receiver HAROGIC SAN-400
Main features: 9 kHz~40 GHz real-time spectrum analyzer/receiver Superheterodyne digital receiver architecture, 14 segments pre-selected filter Typical image suppression and IF rejection>75 dBc 100 MHz analysis bandwidth with adjustable sampling rate, 400 GHz/sec spectrum sweep speed FPGA based digital signal processing 40 GHz DANL=-141 dBm/Hz, Phase Noise=-86 dBc/Hz@10 kHz Weight 185 grams (core module), size 125 × 60 × 17 mm, power consumption 10-14 W Highly compatible API interfaces and SAStudio4 GUI Compatible with ARM and x86 processors, Linux and Windows operating systems Built-in OCXO (option), temperature drift≤0.15 ppm USB3.0/2.0 Type C supported..
Compact Real-Time Spectrum Analyzer/Receiver HAROGIC SAE-200
Main features: 9 kHz~20 GHz real-time spectrum analyzer/receiver Superheterodyne digital receiver architecture, 19segments pre-selected filter 9 kHz~9 GHz typical image suppression>90 dB, typical IF rejection>90 dB 9 GHz~20 GHz typical image suppression>60 dB, typical IF rejection>90 dB 100 MHz analysis bandwidth with adjustable sampling rate, 1.2 THz/sec spectrum sweep speed FPGA based digital signal processing Weight 195 grams (core module), size 125 × 60 × 15 mm, power consumption 10-14 W Highly compatible API interfaces and SAStudio4 GUI Compatible with ARM and x86 processors, Linux and Windows operating systems Operating temperatures range from – 20 ℃/- 40 ℃ to 70 ℃ (option) Built-in OCXO (option)..
