Prana Amplifiers SX Range (New)
Prana Amplifiers SX Range (New)

Prana Amplifiers SX Range (New)

  • Brand: Prana
  • Product Code: Amplifiers SX Range (New)

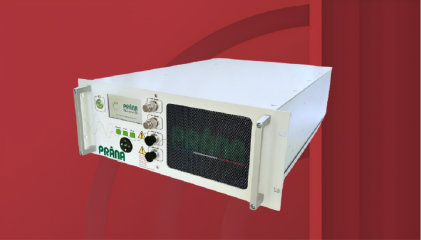

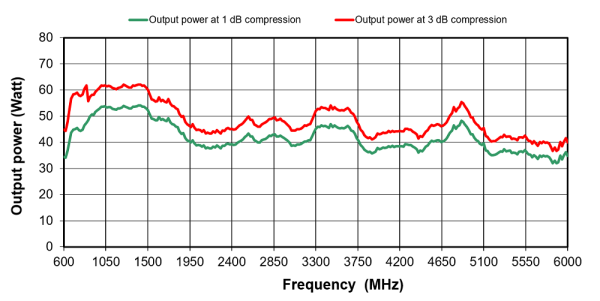

SX 40 :

0.6 GHz - 6 GHz / 40 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 0.6 GHz – 6 GHz
  • Typical output power : 40 W CW
  • Linear output power guaranteed with harmonics :
  • H2, H3 < -15 dBc min. at P1dB of compression min. up to 1 GHz
  • H2, H3 < -20 dBc min. at P1dB of compression above 1 GHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to SX 75 DC, SX 150 DC, SX 250 DC possible
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty

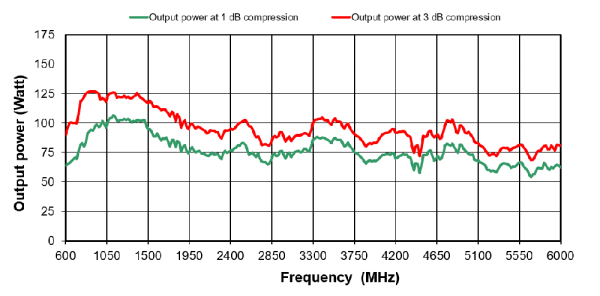

SX 75 :

0.6 GHz - 6 GHz / 75 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 0.6 GHz – 6 GHz
  • Typical output power : 75W CW
  • Linear output power guaranteed with harmonics :
  • H2, H3 < -15 dBc min. at P1dB of compression min. up to 1 GHz
  • H2, H3 < -20 dBc min. at P1dB of compression above 1 GHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to SX 150 DC, SX 250 DC possible
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty

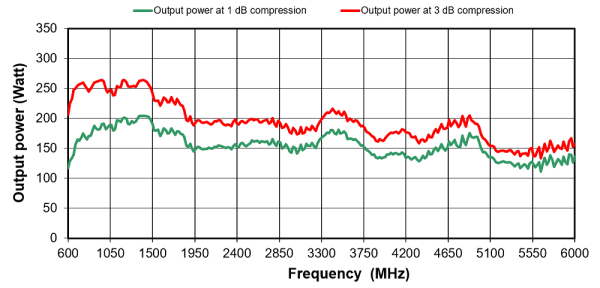

SX 150 :

0.6 GHz - 6 GHz / 150 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 0.6 GHz – 6 GHz
  • Typical output power : 150 W CW
  • Linear output power guaranteed with harmonics :
  • H2, H3 < -15 dBc min. at P1dB of compression min. up to 1 GHz
  • H2, H3 < -20 dBc min. at P1dB of compression above 1 GHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to SX 250 DC possible
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty

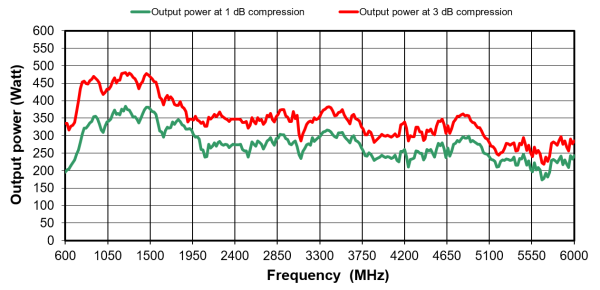

SX 250 :

0.6 GHz - 6 GHz / 250 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 0.6 GHz – 6 GHz
  • Typical output power : 250 W CW
  • Linear output power guaranteed with harmonics :
  • H2, H3 < -15 dBc min. at P1dB of compression min. up to 1 GHz
  • H2, H3 < -20 dBc min. at P1dB of compression above 1 GHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty

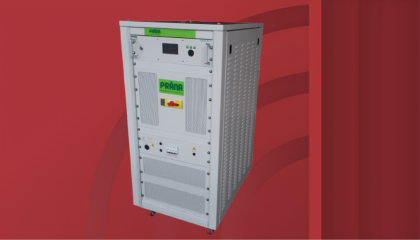

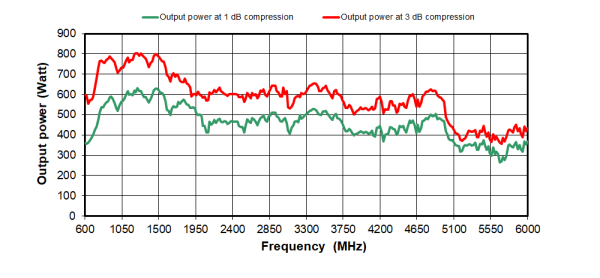

SX 450 :

0.6 GHz - 6 GHz / 450 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 0.6 GHz – 6 GHz
  • Typical output power : 450 W CW
  • Linear output power guaranteed with harmonics :
  • H2, H3 < -15 dBc min. at P1dB of compression min. up to 1 GHz
  • H2, H3 < -20 dBc min. at P1dB of compression above 1 GHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Cabinet on wheels
  • 3 years standard warranty

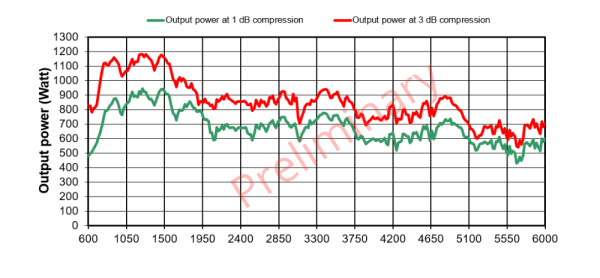

SX 700 :

0.6 GHz - 6 GHz / 700 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 0.6 GHz – 6 GHz
  • Typical output power : 700 W CW
  • Linear output power guaranteed with harmonics :
  • H2, H3 < -15 dBc min. at P1dB of compression min. up to 1 GHz
  • H2, H3 < -20 dBc min. at P1dB of compression above 1 GHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Cabinet on wheels
  • 3 years standard warranty
