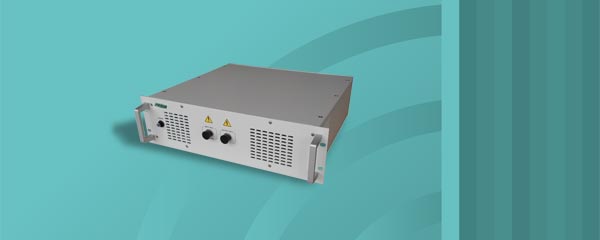

GN 40 :

100 kHz - 200 MHz / 40 W CW

• Class A solid state
• Broadband (instantaneous single band): 100 kHz – 250 MHz
• Frequency extension between 80 kHz and 250 MHz upon request
• Typical output power : 40 W CW
• Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
• P1dB > 45 W and H < -20 dBc up to 100 MHz
• P1dB > 35 W and H < -20 dBc from 100 MHz to 250 MHz
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Reliable, efficient and robust
• 3 years standard warranty

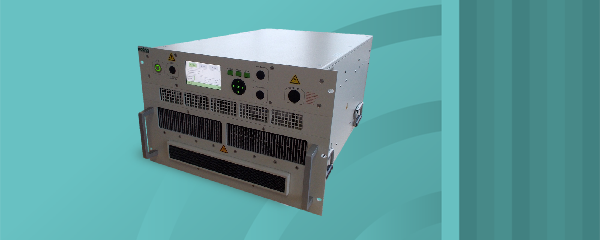

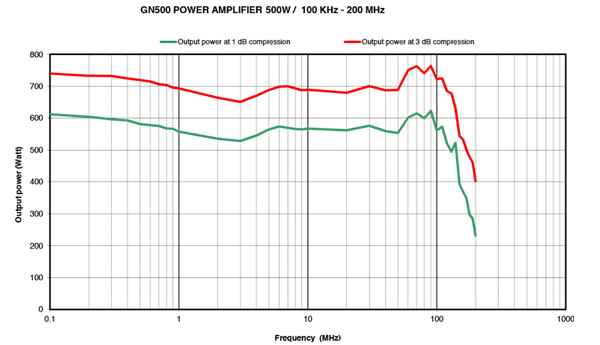

GN 500 :

100 kHz - 200 MHz / 500 W CW

• Class A solid state
• Broadband (instantaneous single band): 100 kHz – 200 MHz
• Frequency extension between 80 kHz to 250 MHz upon request (with limited specifications)
• Typical output power : 500 W CW
• Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
• P1dB > 450 W and H < -20 dBc up to 100 MHz and
• P1dB > 180 W and H < -20 dBc from 100 MHz to 200
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty

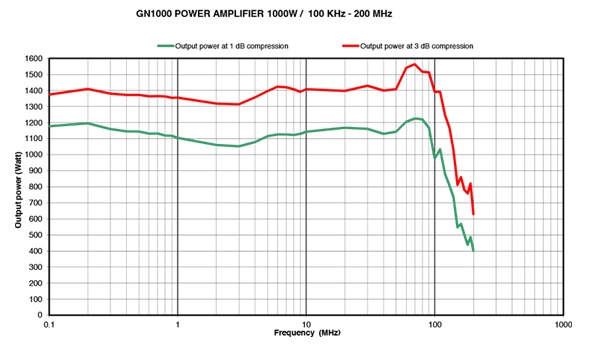

GN 1000 :

100 kHz - 200 MHz / 1000 W CW

• Class A solid state
• Broadband (instantaneous single band): 100 kHz – 200 MHz
• Frequency extension between 80 kHz to 250 MHz upon request (with limited specifications)
• Typical output power : 1000 W CW
• Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
• P1dB > 900 W and H < -20 dBc up to 100 MHz and
• P1dB > 380 W and H < -20 dBc from 100 MHz to 200
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Reliable, efficient and robust
• 19" Rack
• 3 years standard warranty

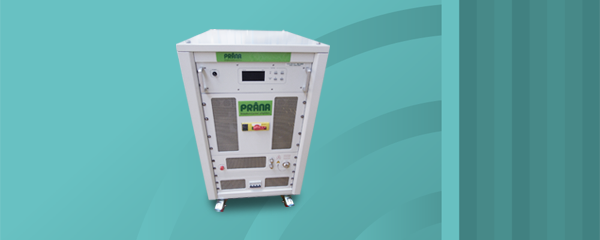

GN 2000 :

100 kHz - 200 MHz / 2000 W CW

• Class A solid state
• Broadband (instantaneous single band): 100 kHz – 200 MHz
• Frequency extension between 80 kHz to 250 MHz upon request (with limited specifications)
• Typical output power : 2000 W CW

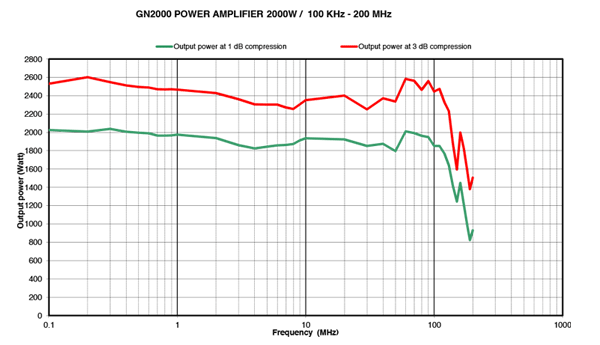

• Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
• P1dB > 1700 W and H<-20 dBc up to 100 MHz and
• P1dB > 800 W and H<-20 dBc from 100 MHz to 200 MHz
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Reliable, efficient and robust
• 19" Cabinet on wheels
• 3 years standard warranty

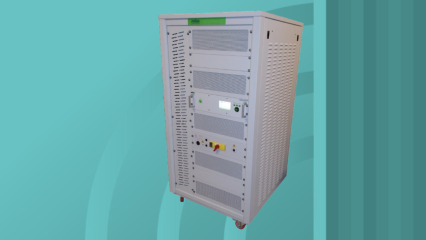

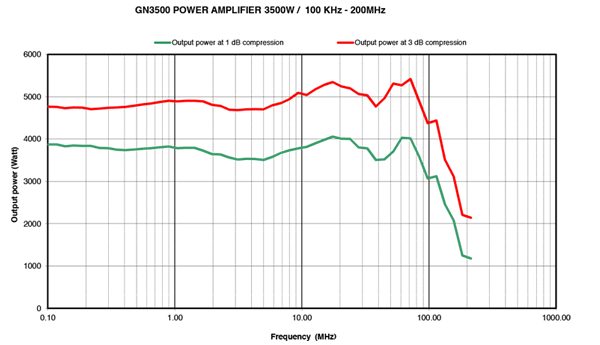

GN 3500 :

100 kHz - 200 MHz / 3500 W CW

• Class A solid state
• Broadband (instantaneous single band): 100 kHz – 200 MHz
• Frequency extension between 80 kHz to 250 MHz upon request (with limited specifications)
• Typical output power : 3500 W CW
• Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
• P1dB > 3000 W and H<-20 dBc up to 100 MHz and
• P1dB > 1200 W and H<-20 dBc from 100 MHz to 200 MHz
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Reliable, efficient and robust
• 22" Cabinet on wheels
• 3 years standard warranty

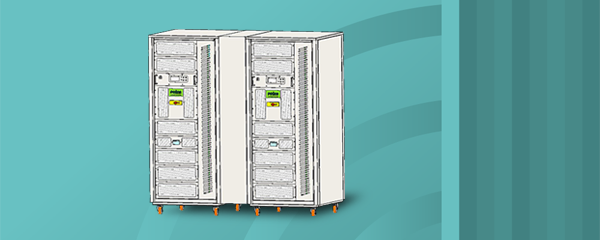

GN 7000 :

100 kHz - 200 MHz / 7000 W CW

• Class A solid state
• Broadband (instantaneous single band): 100 kHz – 200 MHz
• Frequency extension between 80 kHz to 250 MHz upon request (with limited specifications)
• Typical output power : 7000 W CW

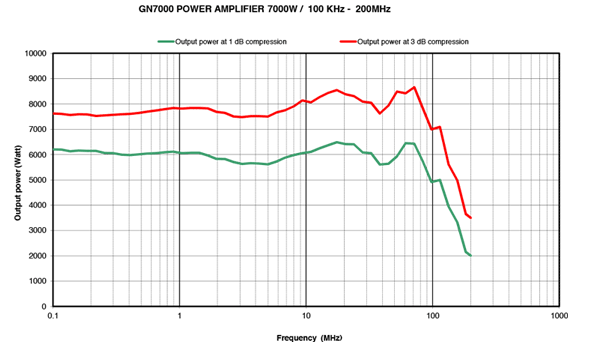

• Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
• P1dB > 5000 W and H<-20 dBc up to 100 MHz and
• P1dB > 2000 W and H<-20 dBc from 100 MHz to 200 MHz
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Reliable, efficient and robust
• 2 x 19" Cabinet on wheels
• 3 years standard warranty

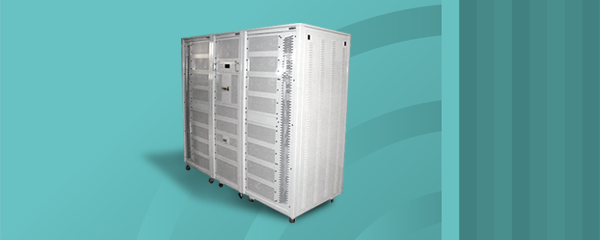

GN 12000 :

100 kHz - 200 MHz / 12000 W CW

• Class A solid state
• Broadband (instantaneous single band): 100 kHz – 200 MHz
• Frequency extension between 80 kHz to 250 MHz upon request (with limited specifications)
• Typical output power : 12000 W CW

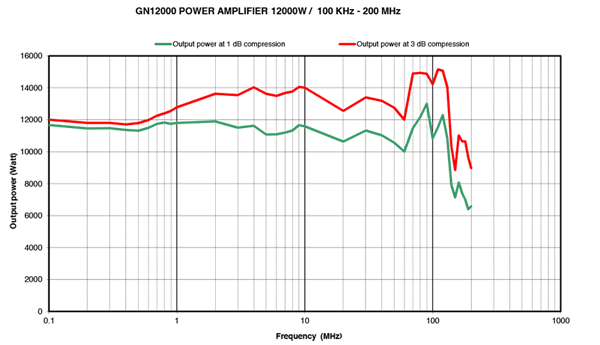

• Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:  P1dB > 10000 W and H<-20 dBc up to 100 MHz and P1dB > 5000 W and H<-20 dBc from 100 MHz to 200 MHz
• Air cooling: self contained fans
• Can operate in full mismatch conditions without damage
• Reliable, efficient and robust
• 3 Cabinet on wheels
• 3 years standard warranty
